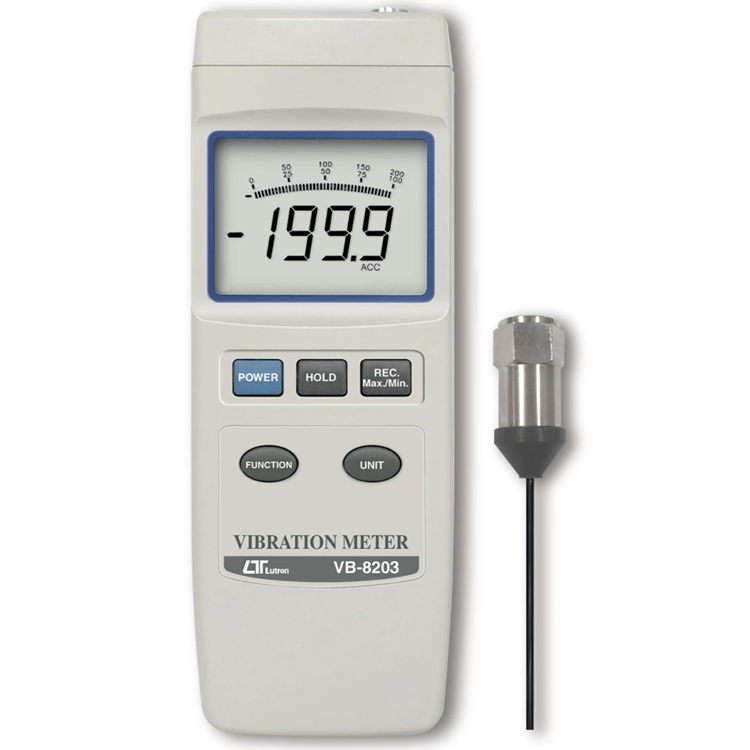

Vibration Meter – VB-8203

The VB-8203 Vibration Meter offers accurate and reliable measurements of acceleration, velocity, and displacement, making it an essential tool for industrial vibration monitoring.

Exceptional Features of the VB-8203:

1. Comprehensive Measurement: Measures acceleration, velocity, and displacement with RMS, peak, and max hold values, providing a complete vibration analysis.
2. Wide Frequency Range: Covers a frequency range of 10 Hz to 1 kHz, meeting ISO 2954 sensitivity requirements for industrial applications.
3. Real-Time Data Logging: Features a data logger function with sampling times from 0 seconds (manual) to 3600 seconds (auto), storing up to 500 data points.
4. User-Friendly Interface: Equipped with a large LCD display with bar graph indicator for easy reading, and includes data hold, max/min value recall, and RS232 computer interface for data transfer.
5. Durable and Portable Design: Includes a vibration sensor with magnetic base, housed in a compact and heavy-duty case, with auto power off to save battery life.

Specifications

Circuit: Exclusive microcomputer circuit.
Display: 52 mm x 38 mm, LCD display. 16 mm (0.63″) digit size. With bar graph indicator.
Measurement: Velocity, Acceleration, Displacement
Function: Main: RMS, Peak, Max. Hold. Velocity
Function: Others: Data hold, Max. & Min. value, Data logger.
Unit: Acceleration (RMS, Peak, Max Hold)
Unit: m/s^2
Unit: G @ 1 G = 9.8 m/s^2
Unit: ft/s^2
Unit: Velocity (RMS, Peak, Max Hold)
Unit: mm/s
Unit: cm/s
Unit: inch/s
Unit: Displacement p-p (RMS, Max Hold)
Unit: mm
Unit: inch
Frequency range: 10 Hz to 1 KHz. Sensitivity relative during the the frequency range meet ISO 2954 Refer to table 1, page 19.
Peak Measurement: To measure the peak value.
Max Hold Measurement: To measure and update the max. peak value.
Zero Button: /
Max. Hold Reset Button: /
Advanced setting: /
Data Hold: Freeze the desired reading.
Memory Recall: /
Data Output: RS 232 serial output, isolate.
Sampling Time of Display: /
Operating Temperature and Humidity: 0 to 50°C (32 to 122°F). Less than 80% RH.
Power Supply: Alkaline or heavy duty type, DC 9V battery, 006P, MN1604 (PP3) or equivalent.
Power Current: Approx. DC 13 mA.
Weight: Meter: 253 g/0.55 LB. Probe with cable and magnetic base 99 g/0,22 LB
Dimension: Meter: 200 x 68 x 30 mm (7.9 x 2.7x 1.2 inch)
Dimension: Vibration sensor probe: Round 16 mm Dia. x 37 mm. Cable length: 1.2 meter.
Range: Acceleration (RMS, Peak, Max Hold)
Range: 0.5 to 199.9 m/s^2
Range: 0.05 to 20.39 G
Range: 2 to 656
Range: Velocity (RMS, Peak, Max Hold)
Range: 0.5 to 199.9 mm/s
Range: 0.05 to 19.99 cm/s
Range: 0.02 to 7.87 inch/s
Range: Displacement p-p (RMS, Max Hold)
Range: 1.999 mm
Range: 0.078 inch
Accuracy: Acceleration (RMS, Peak, Max Hold)
Accuracy: ± (5% + 2d) reading
Accuracy: reading with recall. @ 160 Hz, 80 Hz, 23 ± 5℃
Accuracy: Velocity (RMS, Peak, Max Hold)
Accuracy: ± (5% + 2d) reading
Accuracy: reading with recall. @ 160 Hz, 80 Hz, 23 ± 5℃
Accuracy: Displacement p-p (RMS, Max Hold)
Accuracy: ± (5% + 2d) reading
Accuracy: reading with recall. @ 160 Hz, 80 Hz, 23 ± 5℃
Calibration point: Acceleration (RMS, Peak, Max Hold)
Calibration point: 50 m/s^2 (160 Hz)
Calibration point: Velocity (RMS, Peak, Max Hold)
Calibration point: 50 mm/s (160 Hz)
Calibration point: Displacement p-p (RMS, Max Hold)
Calibration point: 0.141 mm (160 Hz)
Power off: Auto shut off, saves battery life, or manual off by push button.
Standard Accessories: Instruction manual………………………. 1 PC.
Standard Accessories: Vibration sensor with cable………………. 1 PC.
Standard Accessories: Magnetic base…………………………… 1 PC.
Standard Accessories: Carrying Case…………………………… 1 PC.
Optional Accessories: RS232 cable, UPCB-02
Optional Accessories: USB cable, USB-01
Optional Accessories: Data Acquisition software, SW-801-WIN
Optional Accessories: Data Logger (data collection) software, DL-2005

Technical Specifications:

Display:
Type: LCD, 52 mm x 38 mm, with bar graph indicator
Digit Size: 16 mm (0.63 inch)
Measurement Functions:
Acceleration:
Range: 0.5 to 199.9 m/s², 0.05 to 20.39 G, 2 to 656 ft/s²
Resolution: 0.1 m/s², 0.01 G, 1 ft/s²
Accuracy: ±(5% + 2 d) reading @ 160 Hz, 80 Hz, 23 ± 5℃
Velocity:
Range: 0.5 to 199.9 mm/s, 0.05 to 19.99 cm/s, 0.02 to 7.87 inch/s
Resolution: 0.1 mm/s, 0.01 cm/s, 0.01 inch/s
Accuracy: ±(5% + 2 d) reading @ 160 Hz, 80 Hz, 23 ± 5℃
Displacement (p-p):
Range: 1.999 mm, 0.078 inch
Resolution: 0.001 mm, 0.001 inch
Accuracy: ±(5% + 2 d) reading @ 160 Hz, 80 Hz, 23 ± 5℃
Frequency Range: 10 Hz to 1 kHz
Data Logging:
Sampling Time: 0, 1, 2, 10, 30, 60, 600, 1800, 3600 sec
Data Points: 500 max
Power Supply:
Battery: DC 9V (006P, MN1604/PP3 or equivalent)
Power Consumption: Approx. DC 13 mA
Operating Environment:
Temperature: 0 to 50℃
Humidity: Less than 80% RH
Dimensions and Weight:
Meter: 200 x 68 x 30 mm (7.9 x 2.7 x 1.2 inch)
Vibration Sensor Probe: Round 16 mm dia. x 37 mm, cable length 1.2 meter
Weight: Meter 253 g (0.55 lb), Probe with cable and magnetic base 99 g (0.22 lb)

Accessories Included:

Instruction Manual: 1 PC
Vibration Sensor with Cable: 1 PC
Magnetic Base: 1 PC
Carrying Case: 1 PC

Optional Accessories:

RS232 Cable (UPCB-02)
USB Cable (USB-01)
Data Acquisition Software (SW-801-WIN)
Data Logger Software (DL-2005)

Advanced Features:

Microprocessor Circuit: Ensures high accuracy and reliability with a compact and heavy-duty design.
Peak Hold and Max Hold: Captures and holds peak values during measurements for detailed analysis.
RS232 Interface: Allows for easy data transfer and integration with computer systems.

Invest in the VB-8203 Vibration Meter for precise and reliable vibration measurements, ensuring high performance and versatility in various industrial applications.
