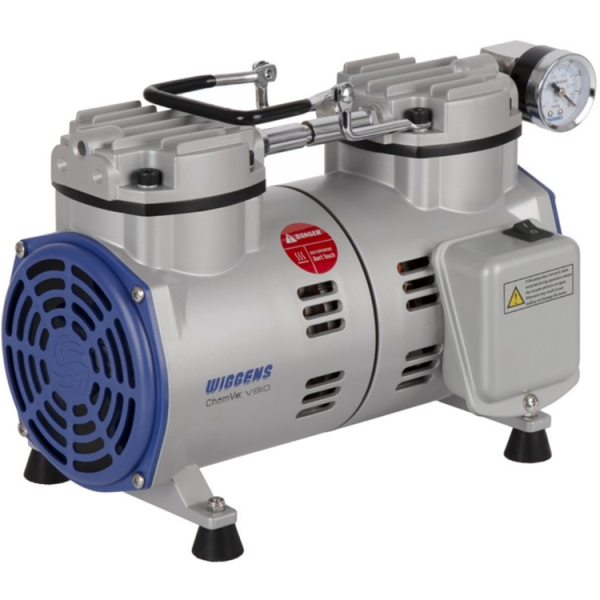

Vacuum Pump (Oil Free Piston) – V810

Chemvak V series vacuum pump is a piston-powered, oil-free pump. With innovative electronic, mechanical technology and human design concept, compact and light weight, clean and maintenance free, safe and comfortable.

Specifications

Model: V810
Flow rate [m3/h] at atm. pressure: 3
Flow rate [l/min] at atm. pressure: 50
Ultimate vacuum [mbar abs.]: 30
Max. Power P [W]: 220
Max. current [A]: 1
Motor speed [rpm]: 1450
Hose connections [mm]: 9
Noise [dB]: 75
Dimensions W x D x H [mm]: 350x170x195
Weight [kg]: 8.6
Power supply: 220V/50Hz

Features

No air pollution, maintenance free
Chemvak V series pumps are driven by piston, without the need of lubricant, regular oil changes and maintenance; with no oil pollution.

Moisture trap with filter cartridge
Chemvak V series pumps are equipped with filter cartridge in air inlet to filter particle and moisture to prolong the life of pump.

Oil-free
The oil-free piston vacuum pump provides continuous, reliable, high flow vacuum for your container.

Vacuum regulator
Chemvak V series pumps are equipped with vacuum regulator to adjust vacuum.

Thermal protection device
Every motor of Chemvak V series pumps has a built-in thermal protection device to shut off the pump automatically when overheated and then resume working when the temperature cools down.

Application
> Biology laboratories
> Food industry
> Microbiological detection
> Vacuum extraction
> Liquid filtration
> Vacuum drying
> Suspended solids measurement
