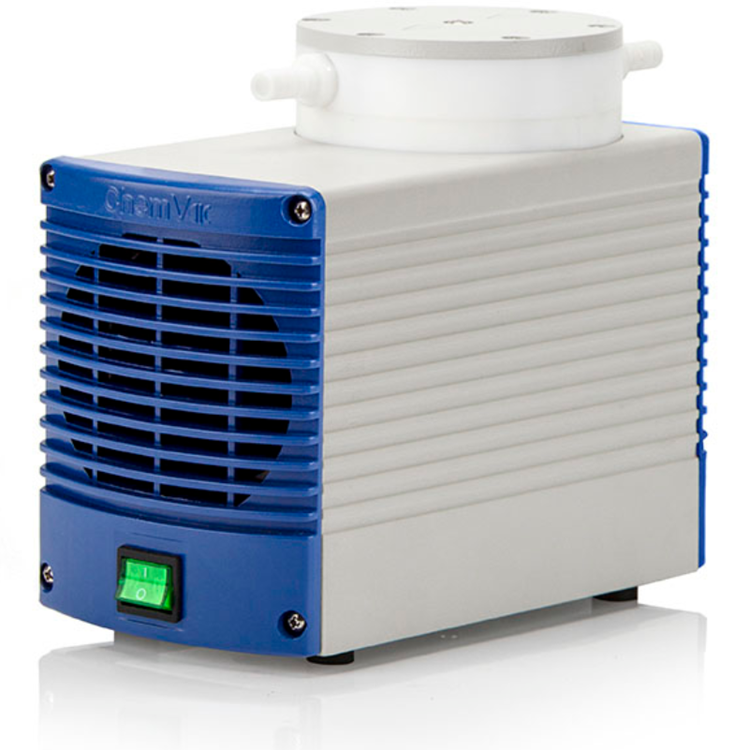

Vacuum Pump (Chemical Resistant) – C300

C series construction with PTFE makes them very resistant to chemical vapors from inlet to exhaust and very tolerant to condensates. Pumping chambers are hermetical ensuring long lifetimes of mechanical parts. Most importantly, diaphragm pumps are oil-free, with vastly reduced service demands compared with oil sealed pumps. They eliminate the cost of water and its contamination well-known from water-jet aspirators, and the waste-oil disposal of rotary vane pumps. They are chemical resistant diaphragm vacuum pumps which can be widely used for hard acidic, basic and solvent vapors by utilizing corrosion proof PTFE on all the wetted surfaces. Through innovative mechanical technology and human considerations, we have made C series to be quiet, safe, maintenance-free and cost effective vacuum pumps.

Specifications

Model: C300
Flow rate [m3/h] at atm. pressure: 1.32
Flow rate [l/min] at atm. pressure: 22
Ultimate vacuum [mbar abs.]: 100
Max. Power P [W]: 60
Motor speed [rpm]: 1450
Pump head: Single stage
Hose connections [mm]: 10
Noise [dB]: 50
Dimensions W x H x D [mm]: 233×110×210
Weight [kg]: 6
Power supply: 220V/50Hz

Features

High chemical resistant
All wetted parts of C series pump are made of PTFE which is ideal for extremely aggressive / corrosive gases and vapors.

Long-term durable
Head cover and diaphragm made of PTFE/PTFE-coated with stability core for unsurpassed long-term performance.

No air pollution, maintenance free
Chemvak C series pumps are driven by diaphragm, without the need of lubricant, regular oil changes and maintenance; with no oil pollution.

Practical
> smooth surfaces for easy cleaning
> sealing system provides reduced leakage rates for improved ultimate vacuum

Quiet and low vibration
Driven direct by motor with no additional belt-driven transmission; the quality vibration proof assembly makes Chemvak C series run at the lowest noise level among all other equivalent pumps.

Thermal protection device
Every motor of Chemvak C series pumps has a built-in thermal protection device to shut off the pump automatically when overheated and then resume working when the temperature cools down.

International safety certification
CE certification

The stability core principle:
for unprecedented long-term performance
chemistry diaphragm pumps provide optimum performance and unsurpassed service intervals even in harsh chemical applications. We achieve this unmatched reliability by manufacturing the most highly stressed components – the head cover and clamping disk.
> high quality PTFE coated EPDM provides long term chemical resistance
> this thick-walled, diffusion resistant, molded fluoroplastic is supported by a stable metallic core for durability
> mechanical precision finishing ensures reproducible WIGGENS quality

Application
> Chemical and petrochemical Industry
> Pharma Industry
> Filtration processes
> Vacuum distillation
> Rotary evaporation
> Vacuum and centrifugal concentration
> Solid phase extraction
> Conventional drying and gel drying
> Advanced substitute for water-jet pumps
