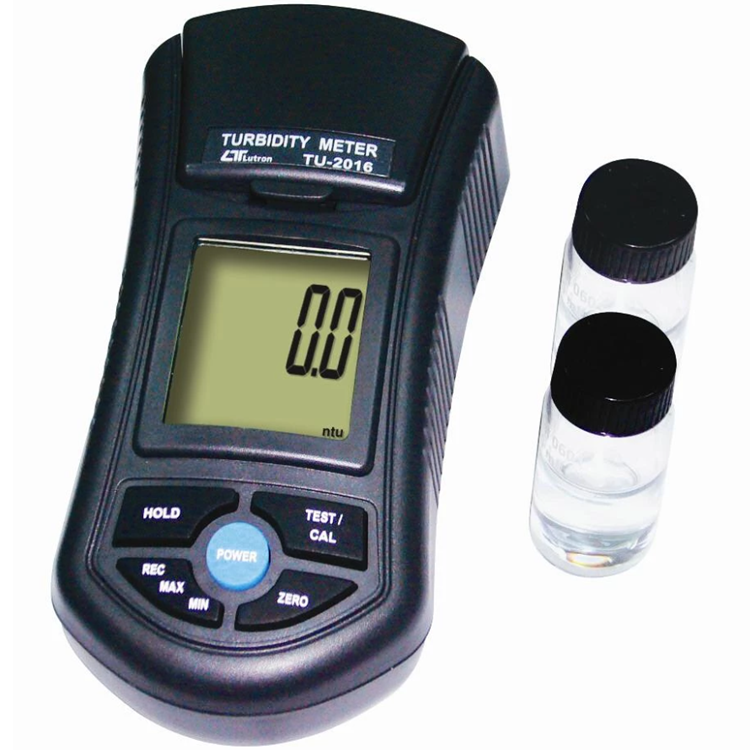

Turbidity Meter – TU-2016

The TU-2016 Turbidity Meter offers accurate and reliable measurements with a robust design, making it an essential tool for various applications in water quality testing, food and beverage industry, and more.

Exceptional Features of the TU-2016:

1. ISO 7027 Compliance: Designed to meet ISO 7027 standards, ensuring high-quality and reliable measurements.
2. Wide Measurement Range: Measures turbidity from 0 to 1,000 NTU with auto-ranging capability, covering a wide spectrum of applications.
3. High Resolution and Accuracy: Provides high resolution of 0.01 NTU for measurements up to 49.99 NTU and 1 NTU for higher ranges, with an accuracy of ±5% reading or ±0.5 NTU (whichever is greater) for low range and ±5% reading or ±5 NTU for high range.
4. User-Friendly Operation: Features a jumbo LCD display for easy readout, four operation buttons, two calibration points, and a data hold function for freezing the desired value on display.
5. Portable and Durable Design: Battery-operated for field and on-site testing convenience, with a heavy-duty compact housing and a hard carrying case for easy transportation and operation.

Specifications

Turbidity Meter: /
Circuit: Custom one-chip of microprocessor LSI circuit.
Display: LCD size : 41 mm x 34 mm
Range: 0.00 to 50.00 NTU, 50 to 1,000 NTU
Range: NTU: Nephelometric Turbidity Unit
Range: Auto range
Resolution: 0.00 to 49.99 NTU 0.01 NTU
Resolution: 50 to 1000 NTU 1 NTU
Accuracy: 0.00 to 49.99 NTU: ± 5% reading or ± 0.5 NTU, whichever is greater.
Accuracy: 50 to 1000 NTU: ± 5% reading or ± 5 NTU, whichever is greater.
Light source: LED, 850 nm.
Detector: Photo diode
Standard: Meet ISO 7027.
Response time: Less than 10 seconds.
Sample volume needed: 10 mL.
Data Hold: Freeze the display reading.
Memory Recall: Maximum & Minimum value.
Display Sampling Time: Approx. 1 second.
Power off: Auto shut off saves battery life or manual off by push button.
Calibration points: 0 NTU, 100 NTU.
Operating Temperature: 0 to 50 °C.
Operating Humidity: Less than 85% R.H.
Power Supply: DC 1.5 V battery (UM4, AAA) x 6 PCs or DC 9V adapter.
Power Current: Stand by: Approx. DC 3.5 mA.
Power Current: Testing: Approx. DC 36 mA.
Weight: 320 g/0.70 LB. Battery is included.
Dimension: 155 x 76 x 62 mm (6.1 x 3.0 x 2.4 inch)
Accessories Included: Testing bottle with 0 NTU standard solution: 1 PC
Accessories Included: Testing bottle with 100 NTU standard solution: 1 PC
Accessories Included: Empty testing bottle: 2 PCs
Accessories Included: Clean cloth: 1 PC
Accessories Included: Clean solution (Distill water): 1 bottle
Accessories Included: Hard carrying case, CA-07A: 1 PC
Optional Accessories: Testing bottle with 100 NTU standard solution, TU-100NTU
Optional Accessories: Testing bottle with 0 NTU standard solution, TU-0NTU
Optional Accessories: Empty testing bottle, 0601
Optional Accessories: AC to DC 9V power adapter.

Technical Specifications:

Measurement Range:
0.00 to 50.00 NTU (Resolution: 0.01 NTU)
50 to 1,000 NTU (Resolution: 1 NTU)
Accuracy:
0.00 to 49.99 NTU: ±5% reading or ±0.5 NTU (whichever is greater)
50 to 1,000 NTU: ±5% reading or ±5 NTU (whichever is greater)
Light Source: LED, 850 nm
Detector: Photodiode
Standards Compliance: ISO 7027
Response Time: Less than 10 seconds
Sample Volume Needed: 10 mL
Display: LCD size 41 mm x 34 mm
Display Sampling Time: Approx. 1 second
Power Supply: DC 1.5V battery (UM4, AAA) x 6 PCs or DC 9V adapter
Power Consumption:
Standby: Approx. DC 3.5 mA
Testing: Approx. DC 36 mA
Dimensions: 155 x 76 x 62 mm (6.1 x 3.0 x 2.4 inches)
Weight: 320 g (0.70 lb) including battery
Operating Temperature: 0 to 50℃
Operating Humidity: Less than 85% RH

Included Accessories:

Testing bottle with 0 NTU standard solution: 1 PC
Testing bottle with 100 NTU standard solution: 1 PC
Empty testing bottles: 2 PCs
Clean cloth: 1 PC
Clean solution (distilled water): 1 bottle
Hard carrying case (CA-07A): 1 PC

Optional Accessories:

Testing bottle with 100 NTU standard solution (TU-100NTU)
Testing bottle with 0 NTU standard solution (TU-0NTU)
Empty testing bottle (0601)
AC to DC 9V power adapter

Versatile Applications:

Ideal for testing municipal water, food and beverage water, or any other aqueous solution where fluid clarity is important.

Invest in the TU-2016 Turbidity Meter for reliable, precise measurements and a robust design that meets the diverse needs of various industries with precision and ease.
