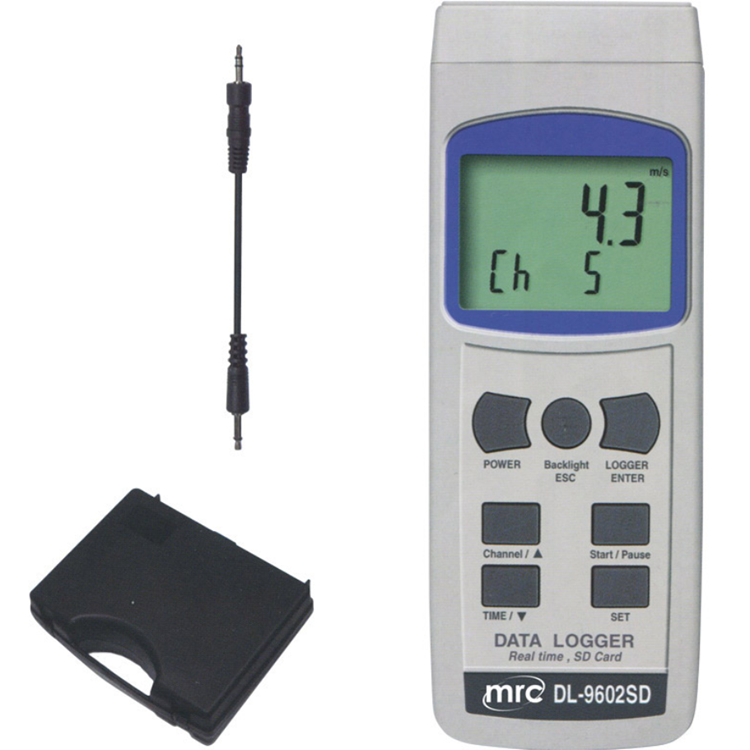

SD Card Data Logger – DL-9602SD

The DM-9680 / DL-9602SD Set offers accurate and reliable measurements along with real-time data recording capabilities, making it an essential tool for various applications in electrical maintenance, troubleshooting, industrial environments, and quality control.

Exceptional Features of the DM-9680 / DL-9602SD Set:

1. Complete Measurement and Data Recording Solution: Includes the DM-9680 Digital Multimeter and the DL-9602SD SD Card Data Logger, providing a complete solution for real-time data logging and analysis.
2. Multi-Function Measurement: The DM-9680 measures ACV, DCV, ACA, DCA, OHM, continuity beeper, transistor hFE, diode, and capacitance, ensuring comprehensive testing capabilities.
3. High Accuracy and Resolution: Features high accuracy and resolution, ensuring precise measurements and reliable data.
4. Real-Time Data Logger: The DL-9602SD provides real-time data recording with a built-in clock and calendar, supporting sampling times from 2 seconds to 8 hours 59 minutes and 59 seconds.
5. Easy Data Transfer: The data recorded on the SD card can be easily transferred to a computer and downloaded to Excel directly for further analysis.

Specifications

Display: LCD size: 52 mm x 38 mm
Display: LCD with Backlight (ON/OFF).
Range: /
Overload Indication: /
Zero adjust: /
Out-of-Range indication: /
Sampling rate: Auto: 2 seconds to 8 hours 59 min. 59 seconds.
Sampling rate: Sampling time can set to 1 second, but memory data may loss
Sampling rate: Manual: Push the data logger button once will save data one time.
Sampling rate: Set the sampling time to 0 second.
Operating Temp.: 0 to 50°C.
Operating Humidity: Less than 85% R.H.
Power Supply: AC/DC power adapter is optional. Alkaline or heavy duty DC 1.5 V battery
Power Supply: (UM3, AA) x 6 PCs, or equivalent.
Power Supply: AC/DC power adapter is optional. DC 9V adapter input. (AC/DC power adapter is optional).
Battery Life: /
Dimension: 178 x 68 x 44 mm (7.0 x 2.7x 1.7 inch)
Weight: 468g / 1.03LB.
Measurement: /
Datalogger Sampling Time Setting range: /
Data error no.: /
Micro SD card Capacity: /
A/D counts no.: /
Range selection: /
Special function: /
Data hold: /
Power On/Off management: /
Memory recall: /
Relative measurement: /
V/A/Hz button: /
Data output: RS 232/USB PC computer interface.
Data output: The output data structure are same as the input data.
Data output: Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
Data output: Connect the optional USB cable USB-01 will get the USB plug.
Polarity: /
Zero adjustment: /
Sampling time of display: Auto: 2 seconds to 8 hours 59 min. 59 seconds.
Sampling time of display: Sampling time can set to 1 second, but memory data may loss
Sampling time of display: Manual: Push the data logger button once will save data one time.
Sampling time of display: Set the sampling time to 0 second.
Power consumption: /
Standard Accessory: Instruction manual: 1 PC
Standard Accessory: Double earphone cable, UPCB-03: 1 PC
Optional Accessories: Hard carrying case, CA-06

Technical Specifications:

DM-9680 Digital Multimeter:
Display: 18 mm (0.7″) LCD, 3 1/2 digits, max indication 1999

Measurement Range:
DC Voltage: 200 mV, 2V, 20V, 200V, 1000V
AC Voltage: 200 mV, 2V, 20V, 200V, 750V
DC Current: 200 µA, 2 mA, 20 mA, 200 mA, 10A
AC Current: 200 µA, 2 mA, 20 mA, 200 mA, 10A
Resistance: 200 Ω, 2K Ω, 20K Ω, 200K Ω, 2M Ω, 20M Ω
Capacitance: 2 nF, 20 nF, 200 nF, 2 µF, 20 µF, 200 µF, 2 mF, 20 mF
Frequency: 20 Hz, 200 Hz, 2 KHz, 20 KHz, 200 KHz, 2 MHz, 20 MHz
Temperature: -20℃ to 1000℃ (-4℉ to 1832℉)
Transistor hFE: 0 – 1000 hFE values of either pnp or npn transistor

Accuracy:
DC Voltage: ± (0.5% + 1d)
AC Voltage: ± (1% + 2d)
DC Current: ± (1% + 1d)
AC Current: ± (1.2% + 2d)
Resistance: ± (1% + 1d) to ± (2% + 2d) depending on range
Capacitance: ± (1.5% + 2d) to ± (5% + 2d) depending on range
Frequency: ± (0.1% + 1d)
Temperature: ± (3% + 3℃)
Input Impedance: 10M ohms

Overload Protection:
500V DC, 350V AC for 15 seconds for DCV and ACV up to 200V
1000V DC, 800V AC for 15 seconds for 1000V range
0.5A fuse for current ranges up to 200mA
10A unfused for current ranges above 200mA
Sampling Time: Approximately 0.4 seconds
RS232 Output: Isolated (photo couple) RS232 serial data output, 9600 baud rate
Operating Temperature: 0℃ to 50℃ (32℉ to 122℉)
Operating Humidity: Less than 80% RH
Power Supply: 006P DC 9V battery (heavy duty type)
Power Consumption: Approximately DC 7 mA
Dimensions: 204 x 90 x 36 mm (7.3 x 3.4 x 1.5 inches)
Weight: 322 g (0.71 lb) including battery

DL-9602SD SD Card Data Logger:
Display: 52 mm x 38 mm LCD with green light backlight
Sampling Time: 2 seconds to 8 hours 59 minutes 59 seconds
Manual Datalogger: Available by setting sampling time to 0 seconds
Input Signal: Accepts DM-9680’s RS232 signal via interface cable UPCB-03
SD Card Capacity: 1 GB to 16 GB
Power Supply: DC 1.5V battery (UM-3, AA) x 6 or DC 9V adapter
Operating Temperature: 0℃ to 50℃ (32℉ to 122℉)
Operating Humidity: Less than 85% RH

Dimensions: 178 x 68 x 44 mm (7.0 x 2.7 x 1.7 inches)
Weight: 468 g (1.03 lb)

Included Accessories:
DM-9680 Digital Multimeter
DL-9602SD SD Card Data Logger
Interface cable (UPCB-03)
Instruction Manual

Optional Accessories:
Hard carrying case (CA-08)
AC to DC 9V power adapter for DM-9680 and DL-9602SD

Versatile Applications:

Ideal for use in electrical maintenance, troubleshooting, industrial environments, quality control, and various other applications requiring precise measurements and data recording.

Invest in the DM-9680 / DL-9602SD Set for reliable, precise measurements and robust data logging capabilities that meet the diverse needs of various industries with precision and ease.
