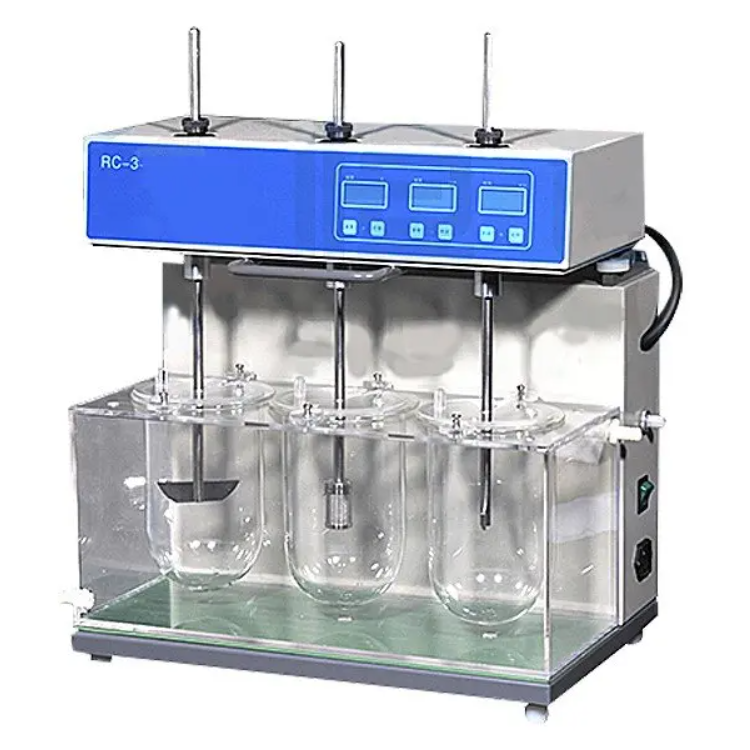

RC-3 Dissolution Tester

DESCRIPTION
RC series of instruments are used for detecting velocity and extent of pharmic dissolution from tablet, capsule etc in prescriptive menstruum.

Applicable standards:

National standard (Chinese codex) / 2015
Industry standard (Dissolution tester)

FEATURES

• It has three vessels and three poles arranged on one line.
• The head part of the instrument can be artificially turned over smoothly and flexibly.
• The basket units and paddle units are made of imported stainless steel (SUS316L).
• The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
• A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.
• It can be operated conveniently by keystroke. The measurement result is displayed by LED. The preset and real data can be
• displayed alternately in time.
• Automation: auto-test, auto-diagnose, auto-alarm.

SPECIFICATIONS

Speed range: (20~200)rpm
Speed accuracy: ±2rpm
Temperature range: ambient to +45.0℃
Temperature Stability: ±0.3℃
Preset timing nine points: (5~900)min
Time accuracy: ±0.3%
Paddle radial run-out: ±0.5mm
Basket radial run-out: ±1.0mm
Power: 220V/50Hz/600W or 110V/60Hz/600W
Dimension: 460*300*480mm
