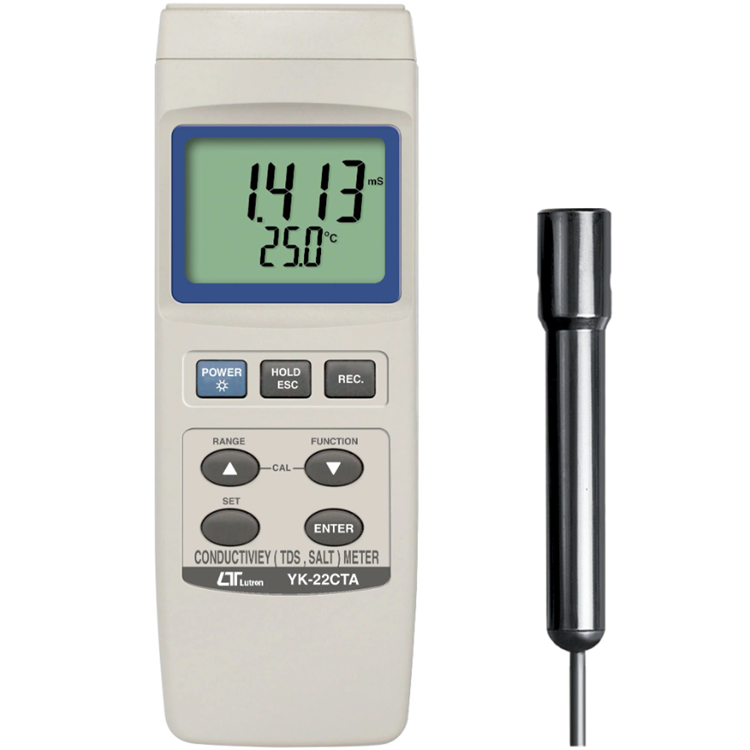

Multi-Parameter (Water Quality Meter) – YK-22CTA

The YK-22CTA Multi-Parameter Water Quality Meter offers accurate and reliable measurements for various parameters, making it an essential tool for applications in water conditioning, aquariums, food processing, and more.

Exceptional Features of the YK-22CTA:

1. Multi-Parameter Measurement: Measures conductivity, TDS, and salt, providing comprehensive testing capabilities.
2. Automatic Temperature Compensation: Built-in temperature sensor provides automatic temperature compensation (ATC) from 0℃ to 60℃ (32℉ to 140℉), ensuring precise readings.
3. Wide Measurement Range: Offers a wide range for conductivity (0 to 200 mS), TDS (0 to 200,000 PPM), and salt (0 to 12% by weight).
4. User-Friendly Functions: Includes data hold, memory recall for maximum and minimum values, and an auto power-off feature to save battery life.
5. RS232/USB Interface: Equipped with RS232 and USB interfaces for easy data transfer to a computer, facilitating further analysis and record-keeping.

Specifications

Display: LCD size: 52 mm x 38 mm
Display: LCD with green backlight (ON/OFF).
Measurement & Range: Conductivity, Temperature, TDS (Total Dissolved Solids), Salt
Resolution: /
Accuracy: /
Over Range Indicator: /
Sampling Time: Approx. 1 second.
Temp. Compensation: Automatic from 0 to 60°C (32 – 140°F), with temperature compensation factor variable between 0 to 5.0% per C.
Operating Temp.: 0 to 50 °C.
Operating Humidity: Less than 85% R.H.
Power Supply: Alkaline or heavy duty DC 1.5 V battery (UM3, AA) x 6 PCs, or equivalent.
Power Supply: DC 9V adapter input. (AC/DC power adapter is optional).
Power Current: Normal operation (w/o LCD Backlight is OFF): Approx. DC 14 mA.
Power Current: If LCD backlight on, the power consumption will increase approx. 12 mA.
Dimension: 177 x 68 x 45 mm (7.0 x 2.7x 1.9 inch)
Electrode Size: /
Calibration Solution: /
Data Hold: Freeze the display reading.
Memory Recall: Maximum & Minimum value.
CD Calibration: /
Circuit: Custom one-chip of microprocessor LSI circuit.
Power Consumption: /
Weight: 489 g/1.08 LB.
Power off: /
Function: /
Ranges and Resolution: /
Conductivity Probe Structure: /
Data Output: RS 232/USB PC computer interface.
Data Output: Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
Data Output: Connect the optional USB cable USB-01 will get the USB plug.
Sampling Time of Data Logger: /
Data Logger number: /
Accessories Included: Instruction manual: 1 PC
Accessories Included: Hard carrying case (CA-06): 1 PC
Accessories Included: Conductivity/TDS/Salt probe, CDPB-03: 1 PC
Optional Accessories: Pt Conductivity/TDS/Salt probe, CDPB-04
Optional Accessories: 1.413 mS Conductivity Standard Solution, CD-14
Optional Accessories: AC to DC 9V adapter.
Optional Accessories: USB cable, USB-01.
Optional Accessories: RS232 cable, UPCB-02.
Optional Accessories: Data Acquisition software, SW-U801-WIN.
Optional Accessories: Excel Data Acquisition software, SW-e802

Technical Specifications:

Measurement Ranges:
Conductivity:
0 to 200 µS
0.2 to 2.000 mS
2 to 20.00 mS
20 to 200.0 mS
TDS:
0 to 132 PPM
132 to 1,320 PPM
1,320 to 13,200 PPM
13,200 to 132,000 PPM
Salt: 0 to 12% salt (by weight)
Resolutions:
Conductivity: 0.1 µS, 0.001 mS, 0.01 mS, 0.1 mS
TDS: 0.1 PPM, 1 PPM, 10 PPM, 100 PPM
Salt: 0.01% salt
Accuracy:
Conductivity: ±2% F.S. + 1d
TDS: ±2% F.S. + 1d
Salt: ±0.5% salt value
Display: LCD size 52 mm x 38 mm with green backlight
Temperature Compensation: Automatic from 0℃ to 60℃ (32℉ to 140℉) with a variable factor between 0 to 5.0% per ℃
Operating Temperature: 0℃ to 50℃ (32℉ to 122℉)
Operating Humidity: Less than 85% RH
Power Supply: DC 1.5V batteries (UM-3, AA) x 6 or DC 9V adapter
Dimensions: 177 x 68 x 45 mm (7.0 x 2.7 x 1.9 inches)
Weight: 489 g (1.08 lb)

Included Accessories:

Instruction manual
Hard carrying case (CA-06)
Conductivity/TDS/Salt probe (CDPB-03)

Optional Accessories:

Pt Conductivity/TDS/Salt probe (CDPB-04)
1.413 mS Conductivity Standard Solution (CD-14)
AC to DC 9V adapter
USB cable (USB-01)
RS232 cable (UPCB-02)
Data Acquisition software (SW-U801-WIN)
Excel Data Acquisition software (SW-e802)

Versatile Applications:

Ideal for use in aquariums, beverage industry, fish hatcheries, food processing, photography, laboratories, paper industry, plating industry, quality control, schools, colleges, and water conditioning.

Invest in the YK-22CTA Multi-Parameter Water Quality Meter for reliable, precise measurements and a robust design that meets the diverse needs of various industries with precision and ease.
