Vacuum filtration technique is widely used in liquid filtration in microbiological detection, suspended solid detection, sample pre-process or solvent purification, mostly for microanalysis of HPLC, GC, or AA in food, medicine, beverage, drinking water, etc.

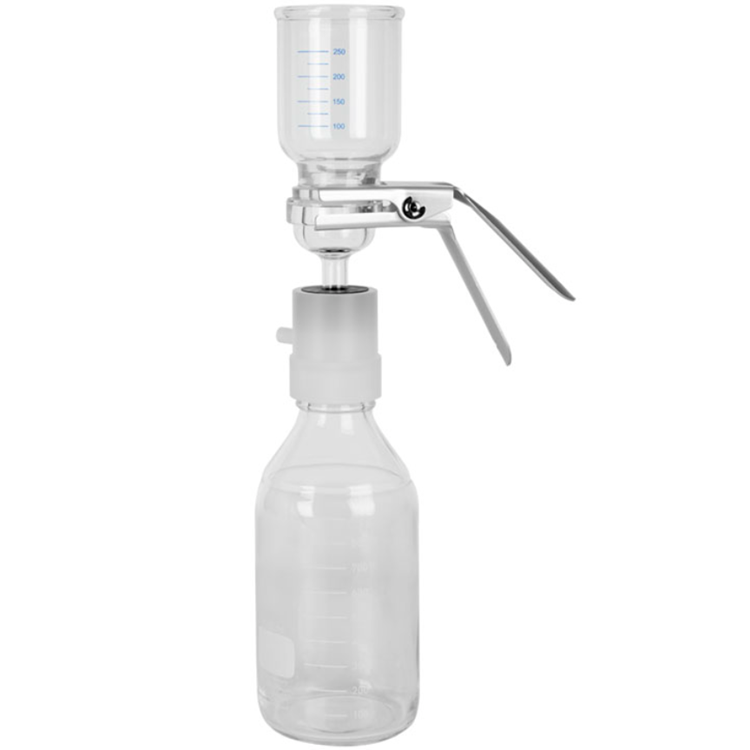

This unique design combines a filtration funnel with a receiver flask with drain, together with magnetic weighted base, guaranteeing the efficiency and stability.
Specifications
Model: VF12
Material 1: Funnel: Borosilicate Glass
Material 2: Funnel Base: Borosilicate Glass
Material 3: Membrane Support: Borosilicate Glass
Material 4: Stopper: Silicon
Material 5: Receiver Flask with Drain: Borosilicate Glass
Funnel Capacity (mL): 250
Filtration Flask Capacity (mL): 1000
Filter Diameter (mm): 47
Effective Filtration Area (cm2): 9.6
Tube I.D. (mm): 8
Order Information
250mL Glass Filtration Set
47mm, Sintered glass membrane support Ideal for the purification of organic, corrosive liquid such as solvent (mobile phase) for HPLC analysis.
VF12: 167200-12
250mL Glass filter set (1+2+3+4): 167120-31
1. Glass funnel, 250 mL: 167210-03
2. Anodized aluminum clamp: 167240-01
3. Glass support base: 167230-03
4. Silicon stopper: 167110-16
5. Filtration adapter: 167000-65
6. 1000mL Glass storage bottle (SOCOREX): S314.1000
