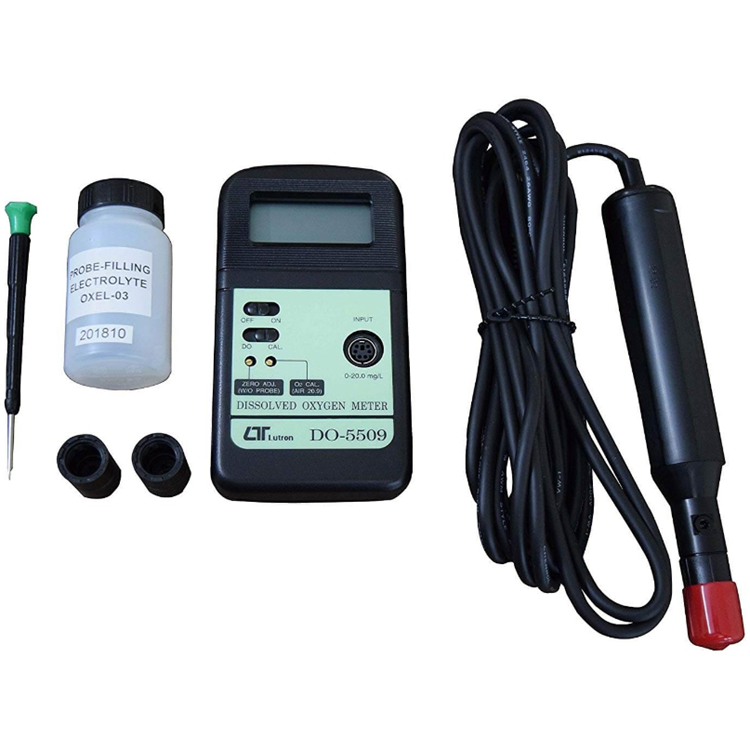

Dissolved Oxygen (DO) Meters – DO-5509

The DO-5509 Pocket Dissolved Oxygen Meter provides accurate and reliable dissolved oxygen and temperature measurements, making it an essential tool for various professional applications.

Exceptional Features of the DO-5509:

1. High Precision Measurement: Utilizes a polarographic type probe with an incorporated temperature sensor for precise dissolved oxygen (DO) and temperature measurements.
2. Portable Design: Compact and lightweight design, making it easy to carry and use in various field environments.
3. Automatic Temperature Compensation: Ensures accurate DO measurements by automatically adjusting for temperature variations from 0 to 40℃.
4. User-Friendly Interface: Features a clear 13 mm (0.5 inch) LCD display with 3 1/2 digits, and panel adjustment knobs for zero and calibration settings.
5. Versatile Applications: Ideal for aquariums, medical research, agriculture, fish hatcheries, laboratories, water conditioning, mining industry, schools, and colleges.

Specifications

Display: 13mm (0.5″) LCD, 3 1/2 digits.
Circuit: /
Measurement Function: /
Advanced setting: /
Data Hold: /
Memory Recall: /
Sampling Time of Display: /
Data Output: /
Operation Temperature: 0 to 50 (32 to 122).
Operating Humidity: Less than 80% RH.
Power Supply: /
Power Current: /
Weight: 390g (0.86 LB) – with probe.
Dimension: Main instrument: 131 x 70 x 25mm (5.2 x 2.8 x 1.0 inch).
Dimension: Oxygen probe: 190 mm x 28 mm Dia. (7.5″ x 1.1″ Dia.)
Dimension: Probe cable length: 4 meters
Probe Weight: /
Probe Size: /
Probe Cable Length: /
Accessories Included: Oxygen probe (OXPB-09N): 1 PC.
Accessories Included: Operation manual: 1 PC.
Accessories Included: Spare Probe head with Diaphragm set, OXHD-04: 2 PCs.
Accessories Included: Probe-filling Electrolyte, OXEL-03: 1 PC.
Optional Accessories: Oxygen probe: OXPB-09N
Optional Accessories: Spare Probe head with Diaphragm set: OXHD-04
Optional Accessories: Probe-filling Electrolyte: OXEL-03
Optional Accessories: Hard carrying case: CA-06

Technical Specifications:

Display:
Type: LCD
Size: 13 mm (0.5 inch), 3 1/2 digits

Measurement Range and Resolution:
Dissolved Oxygen:
Range: 0 to 20.0 mg/L
Resolution: 0.1 mg/L
Accuracy: ±0.4 mg/L (after calibration within 23 ± 5℃)

Temperature Compensation: Automatic from 0 to 40℃

Panel Adjustment Knobs: Zero knob, Calibration knob

Power Supply: 006P DC 9V battery (heavy duty)

Power Consumption: Approx. DC 3.5 mA

Operating Environment:
Temperature: 0 to 50℃ (32 to 122℉)
Humidity: Less than 80% RH

Dimensions:
Main Instrument: 131 x 70 x 25 mm (5.2 x 2.8 x 1.0 inch)
Oxygen Probe: 190 mm x 28 mm Dia. (7.5 x 1.1 inch Dia.)
Probe Cable Length: 4 meters

Weight: 390 g (0.86 lb) with probe

Accessories Included:
Oxygen Probe (OXPB-09N): 1 PC
Operation Manual: 1 PC
Spare Probe Head with Diaphragm Set (OXHD-04): 2 PCs
Probe-Filling Electrolyte (OXEL-03): 1 PC

Optional Accessories:
Oxygen Probe (OXPB-09N)
Spare Probe Head with Diaphragm Set (OXHD-04)
Probe-Filling Electrolyte (OXEL-03)
Hard Carrying Case (CA-06)

Invest in the DO-5509 Pocket Dissolved Oxygen Meter for precise and portable dissolved oxygen measurements, ensuring high performance and versatility in various professional applications.
