Specifications
Model: WD325
Order No.: 179200
Temperature setting range [℃]: Fixed 150.0℃ for COD, 60.0~200.0 adjustable
Temperature accuracy [℃]: ±2 (at 150.0℃)
Hot top indicator: Flashing when block temperature is over 70.0℃
Automatic shutoff: The temperature of block is over 240.0℃
Time setting [min]: 1~1999 with audible alarm and automatic shutoff or continuous operation
Heat output [W]: 220
Temperature display: LED display
Temperature setting: Touch button
Number of heating blocks × (block size W × L × Hmm): 25×(Ø16.5*55mm sample vials)
Optional block is available: —
Housing material: Stainless steel with powder paint coating
Heating block material: Aluminium alloy
Dimensions W x D x H [mm]: 189 x315x116
Weight [kg]: 4.5
Power supply: 110V/60Hz or 220V/50Hz
Features
Compliance with regulations

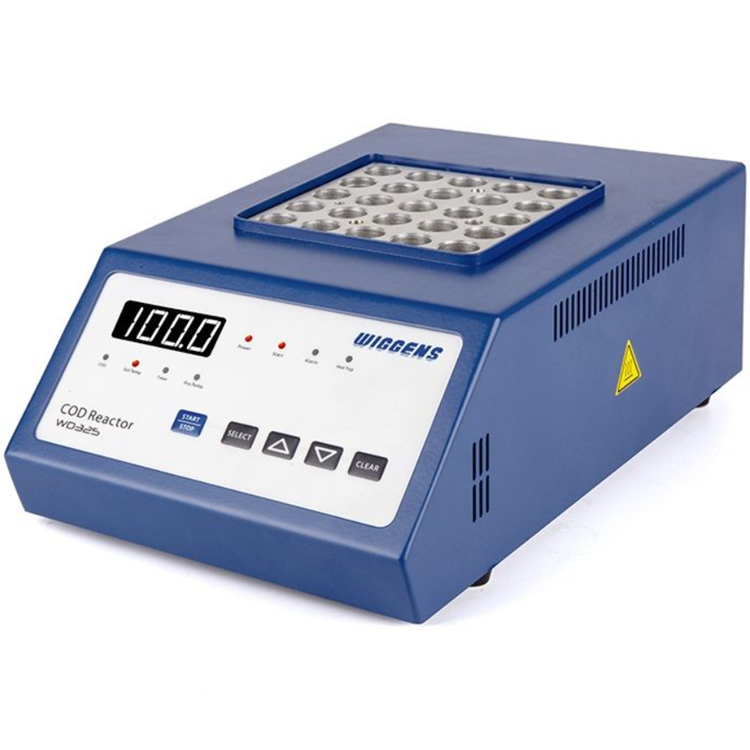

WD325 COD reactor is used to digest closed micro reflux COD vial and can meet USEPA 410. 4. It is easier and safer than traditional open macro reflux method.
Special COD program
Just press start/stop button, and the reactor will start to heat up to 150℃ and keep for 2-hour countdown then shut down automatically with 10-sec audio alarm.
3 additional program settings
Temperature range setting 60℃ – 200℃ and timer from 1 – 999. 3 Built-in additional heating program settings available for users to store and execute as needed.
Auto shut off and audio alarm
WD325 can stop heating, and then shut off automatically with audio alarm when every program is completed.
Application
Waste water from factories
Water quality in lake, pond and river
