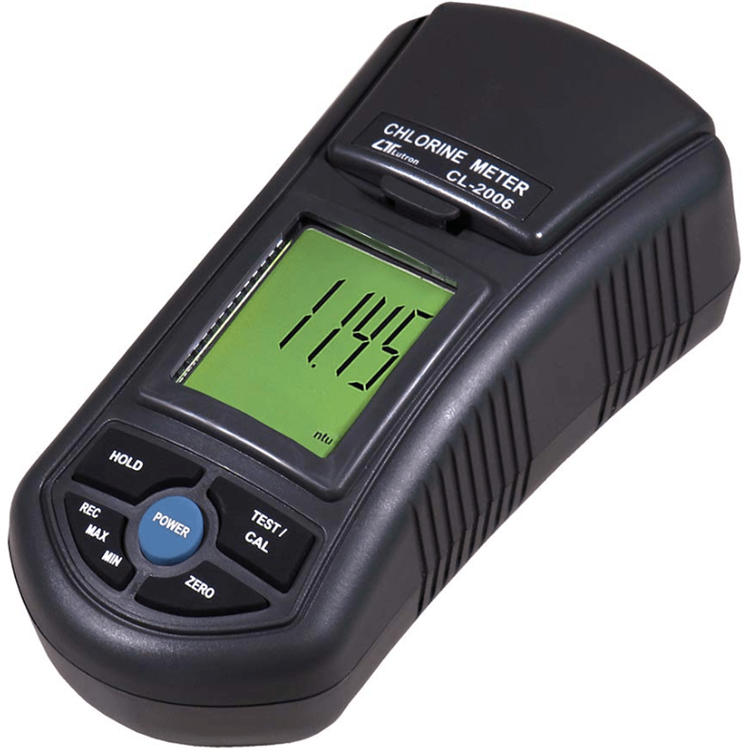

Chlorine Meter – CL-2006
Achieve Precision and Reliability with a Professional Chlorine Meter
Brand: Lutron
Model: CL-2006
Origin: Taiwan
The CL-2006 Chlorine Meter provides accurate and reliable measurements of free and total chlorine levels, making it an essential tool for various water testing applications.
Exceptional Features of the CL-2006:
Dual Measurement Capability: Measures both free and total chlorine (Cl) in the range of 0.00 to 3.50 ppm (mg/L), ensuring comprehensive water quality testing.
Advanced Optical System: Utilizes a special narrow band LED lamp for the most accurate and repeatable readings, based on an adaptation of USEPA Method 330.5 and Standard Method 4500-Cl G.
High Resolution and Accuracy: Features a high resolution of 0.01 ppm (mg/L) and an accuracy of ±0.02 ppm (mg/L) at 1.00 ppm, with a response time of less than 10 seconds.
User-Friendly Design: Equipped with a large LCD for easy readout, splash-proof front panel, data hold function, and memory recall for maximum and minimum values. The meter also includes auto shut off to save battery life.
Portable and Convenient: Battery operated for field and on-site testing, with a compact and durable housing. Comes with a hard carrying case for easy transportation and operation.
Specifications
Circuit: Custom one-chip of microprocessor LSI circuit.
Display: LCD size: 41mm x 34mm
Range: Free chlorine (CL): 0.00 to 3.50 ppm (mg/L).
Range: Total chlorine (CL): 0.00 to 3.50 ppm (mg/L).
Resolution: 0.01 ppm (mg/L).
Accuracy: ±0.02 ppm (mg/L).
Accuracy: @ 1.00 ppm (mg/L)
Light source: LED, 525 nm.
Light detector: Photo diode
Response time: Less than 10 seconds.
Sample volume: 10 mL.
Data Hold: Freeze the display reading.
Memory Recall: Maximum & Minimum value.
Method: The measuring method is an adaptation of the USEPA Method 330.5 and Standard Method 4500-Cl G.
Method: The reaction between free ( total )chlorine and the DPD reagent cause a pink tint in the sample.
Display Sampling Time: Approx. 1 second.
Power off: Auto shut off saves battery life or manual off by push button.
Calibration points: Zero chlorine.
Calibration points: 1.00 ppm (Free chlorine).
Calibration points: 1.00 ppm (Total chlorine).
Operating Temperature: 0 to 50°C.
Operating Humidity: Less than 85% R.H.
Power Supply: DC 1.5V battery (UM4, AAA) x 6 PCs, or equivalent.
Power Current: Stand by: Approx. DC 4 mA.
Power Current: Testing: Approx. DC 12 mA.
Weight: 320 g/0.70 LB. @ Battery is included.
Dimension: 155 x 76 x 62 mm, (6.1 x 3.0 x 2.4 inch)
Accessories Included: Hard carrying case CA-07A: 1 PC
Accessories Included: Instruction manual: 1 PC
Accessories Included: 1.0 ppm Free Chlorine standard solution, CF-01: 1 PC
Accessories Included: 1.0 ppm Total Chlorine standard solution, CT-01: 1 PC
Accessories Included: Zero Chlorine standard solution, CL-01: 1 PC
Accessories Included: Empty testing bottle: 2 PCs
Accessories Included: Clean cloth: 1 PC
Accessories Included: Free Chlorine DPD powder: 10 PCs
Accessories Included: Total Chlorine DPD powder: 10 PCs
Optional Accessories: Free Chlorine DPD powder (10 PCs), Model: CFP-10
Optional Accessories: Total Chlorine DPD powder (10 PCs), Model: CTP-10
Optional Accessories: Empty testing bottle, Model: 0601
Optional Accessories: 1.0 ppm Free Chlorine standard solution, Model: CF-01
Optional Accessories: 1.0 ppm Total Chlorine standard solution, Model: CT-01
Optional Accessories: Zero Chlorine standard solution, Model: CL-01
Technical Specifications:
Measurement Method: Adaptation of USEPA Method 330.5 and Standard Method 4500-Cl G
Range:
Free Chlorine: 0.00 to 3.50 ppm (mg/L)
Total Chlorine: 0.00 to 3.50 ppm (mg/L)
Resolution: 0.01 ppm (mg/L)
Accuracy: ±0.02 ppm (mg/L) @ 1.00 ppm
Light Source: LED, 525 nm
Light Detector: Photo diode
Response Time: Less than 10 seconds
Sample Volume: 10 mL
Display:
Type: LCD
Size: 41 mm x 34 mm
Operating Environment:
Temperature: 0 to 50℃ (32 to 122℉)
Humidity: Less than 85% RH
Power Supply:
DC 1.5V battery (UM4, AAA) x 6 PCs or equivalent
Power Consumption:
Standby: Approx. DC 4 mA
Testing: Approx. DC 12 mA
Dimensions: 155 x 76 x 62 mm (6.1 x 3.0 x 2.4 inches)
Weight: 320 g (0.70 lb, including battery)
Accessories Included:
Hard Carrying Case (CA-07A): 1 PC
Instruction Manual: 1 PC
1.0 ppm Free Chlorine Standard Solution (CF-01): 1 PC
1.0 ppm Total Chlorine Standard Solution (CT-01): 1 PC
Zero Chlorine Standard Solution (CL-01): 1 PC
Empty Testing Bottles: 2 PCs
Clean Cloth: 1 PC
Free Chlorine DPD Powder: 10 PCs
Total Chlorine DPD Powder: 10 PCs
Optional Accessories:
Free Chlorine DPD Powder (10 PCs, Model: CFP-10)
Total Chlorine DPD Powder (10 PCs, Model: CTP-10)
Empty Testing Bottle (Model: 0601)
1.0 ppm Free Chlorine Standard Solution (Model: CF-01)
1.0 ppm Total Chlorine Standard Solution (Model: CT-01)
Zero Chlorine Standard Solution (Model: CL-01)
Advanced Features:
Auto Shut Off: Saves battery life by shutting off the meter automatically.
Microprocessor Circuit: Ensures high accuracy and provides special functions.
Data Hold and Memory Recall: Freezes the display reading and recalls maximum and minimum values.
Invest in the CL-2006 Chlorine Meter for precise and reliable chlorine measurements, ensuring high performance and versatility in various water testing applications.
