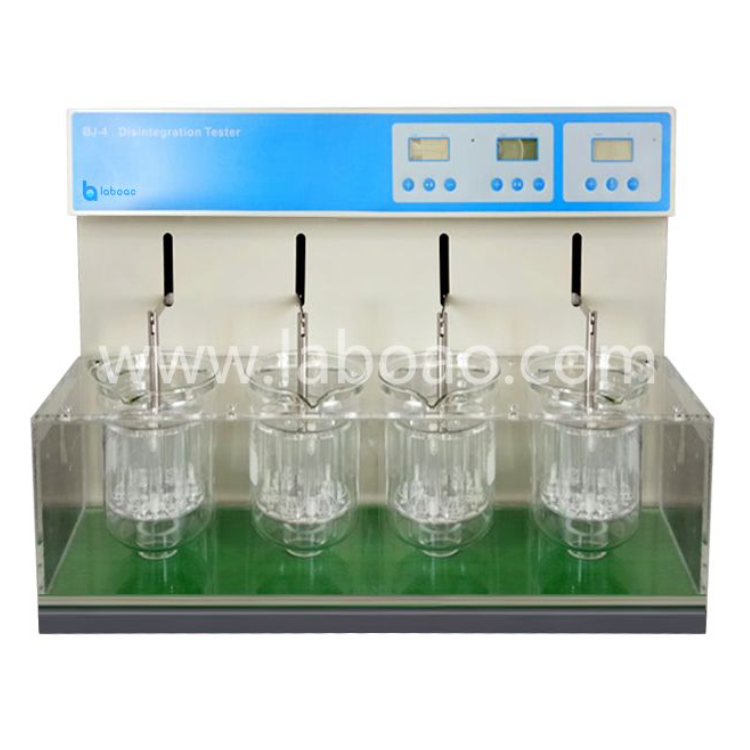

BJ-4 Disintegration Tester

DESCRIPTION
Disintegration time limit tester is a drug test instrument to test the disintegration time limit of tablets, capsules and pills in accordance.

FEATURES

• Double-basket working position system measures disintegration time limit.
• 4 sets of baskets, which can conduct independent disintegration experiment respectively.
• Electronic temperature sensor can display and monitor various points in water bath case and the temperature in the beaker. High-precision digital electronic sensor is adopted to ensure the high precision and high accuracy of water bath temperature without the need for calibration.
• The instrument controls the bath temperature at 37.0℃ automatically (prescribed by Pharmacopeia). It can also reset the preset temperature again at any time.
• The instrument sets the lifting time of baskets to be 15min automatically, which can also be reset at any time.
• It adopts the computer control technology which is centered on SCM to control two performance parameters including bath temperature and working time intelligently.
• The instrument can monitor bath temperature, give over-temperature alarm and protect itself automatically.

SPECIFICATIONS

Model: BJ-4
Temperature prefabrication range: room temperature:～50℃, display resolution:0.1℃
Temperature control accuracy: ±0.3℃
Timing prefabrication range: 1min～900min
Time control accuracy: ±0.5min
Work noise: ＜60db
Number of lifting baskets: 4 sets
Lifting frequency of basket: (30～31) times/min.
Lifting distance of basket: (55±1) mm
Minimum spacing: 25mm±2mm
Mesh size: standard configuration 2mm, (optional for 0.425mm and 1mm bore diameters)
Power supply: 220V50Hz
Total power: 600W
