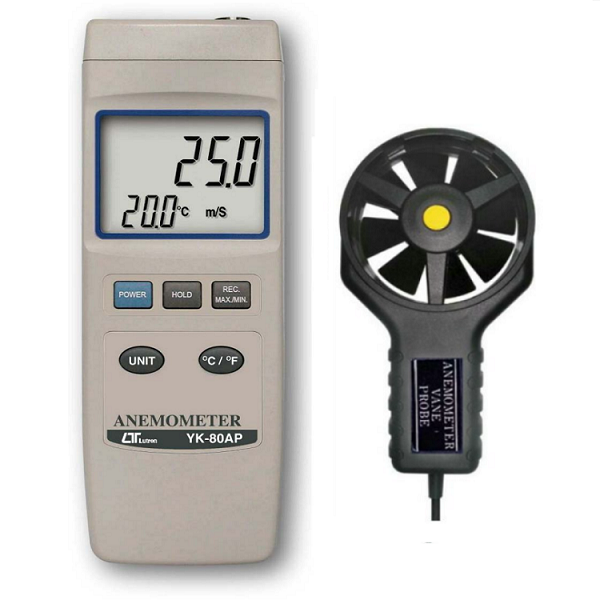

Anemometer – YK-80AP

The YK-80AP Anemometer provides accurate and reliable measurements of air velocity and temperature, making it an essential tool for various industrial, environmental, and HVAC applications.

Exceptional Features of the YK-80AP:

1. Microprocessor Circuit: Assures maximum accuracy and provides special functions and features, ensuring reliable and precise measurements.
2. Multi-Function Capability: Measures air velocity in multiple units (m/s, km/h, ft/min, knots, mile/h) and temperature (℃, ℉), offering versatility for different measurement needs.
3. User-Friendly Design: Equipped with a large dual function LCD display for easy readout, and user-friendly controls including data hold, memory recall for maximum and minimum readings, and auto power off to save battery life.
4. Durable and Portable: Constructed with a heavy-duty and compact housing case, making it durable for long-lasting use and easy to carry.
5. Advanced Connectivity: Includes an RS232 PC serial interface for data output, enhancing data management and integration with other systems.

Specifications

Display: 51 mm x 32 mm supper large
Display: LCD display.
Display: Dual function meter’s display.
Anemometer Unit: /
Temp. unit: /
Barometer unit: /
Humidity unit: /
Dew point: /
Circuit: Custom one-chip of micro-processor LSI circuit
Sensor Structure: Air velocity: Conventional twisted van arm and low friction ball bearing design.
Data Hold: /
Memory Recall: Records Maximum and Minimum readings with RECALL.
Sampling Time: /
Power off: Auto shut off saves battery life or manual off by push button.
Operating Temperature: Meter: 0 to 50 (32 to 122).
Operating Temperature: Vane Probe: 0 to 60 (32 to 140).
Operating Humidity: Less than 80% RH.
Power Supply: 006P DC 9V battery (heavy duty type)
Power Current: Approx. DC 6 mA.
Weight: 220 g/0.48 LB.
Dimension: Main Instrument: 207 x 68 x 29 mm (8.1 x 2.7 x 1.1 inch).
Dimension: Sensor head: Round, 72 mm Dia.
Measurement: m/s (meters per second),
Measurement: km/h (kilometers per hour),
Measurement: ft/min (feet/per minute),
Measurement: knots (nautical miles per hour),
Measurement: mile/h(miles per hour),
Measurement: Temp.- , ., ℃ ℉.,
Measurement: Data hold.
Electrical Specifications: /
Datalogger Sampling Time Setting range: /
Memory Card: /
Advanced setting: /
Temperature Compensation: /
Data Output: RS 232 PC serial interface.
Accessories Included: Instruction manual: 1 PC.
Accessories Included: Anemometer probe: 1 PC.
Accessories Included: Carrying case, CA-06: 1 PC.
Optional Accessories: RS232 cable, UPCB-02.
Optional Accessories: USB cable, USB-01.
Optional Accessories: Application windows software,
Optional Accessories: SW-U801-WIN.

Technical Specifications:

Display:
Type: Large dual function LCD
Size: 51 mm x 32 mm

Measurement Functions:
Air Velocity:
Range:
m/s: 0.4 to 25.0 m/s
km/h: 1.4 to 90.0 km/h
ft/min: 80 to 4930 ft/min
knots: 0.8 to 48.8 knots
mile/h: 0.9 to 55.9 mile/h
Resolution:
m/s: 0.01 m/s
km/h: 0.1 km/h
ft/min: 1 ft/min
knots: 0.1 knots
mile/h: 0.1 mile/h
Accuracy:
m/s: ±(2% + 0.2 m/s)
km/h: ±(2% + 0.8 km/h)
ft/min: ±(2% + 40 ft/min)
knots: ±(2% + 0.4 knots)
mile/h: ±(2% + 0.4 mile/h)
Temperature:
Range:
℃: 0 to 50℃
℉: 32 to 122℉
Resolution: 0.1℃
Accuracy:
℃: ±0.8℃
℉: ±1.5℉

Power Supply:
006P DC 9V battery (heavy duty type)
Power Consumption: Approx. DC 6 mA

Operating Environment:
Temperature: 0 to 50℃
Humidity: Less than 80% RH

Dimensions:
Main Instrument: 207 x 68 x 29 mm (8.1 x 2.7 x 1.1 inches)
Sensor Head: Round, 72 mm Dia.
Weight: 220 g (0.48 lb)

Accessories Included:

Instruction Manual: 1 PC
Anemometer Probe: 1 PC
Carrying Case (CA-06): 1 PC

Optional Accessories:

RS232 Cable (UPCB-02)
USB Cable (USB-01)
Data Acquisition Software (SW-U801-WIN)

Advanced Features:

Data Hold Function: Freezes the current reading value for convenient recording.
Max/Min Value Memory: Stores the maximum and minimum values for easy reference.
Auto Power Off: Conserves battery life by shutting off the meter automatically.
Low-Friction Ball Vane Wheels: Ensures accurate measurements in both high and low air velocities.
Durable Construction: Strong ABS plastic housing for long-lasting use.

Applications:

HVAC Systems: Check air flow in heating and cooling systems.
Environmental Monitoring: Measure wind speeds and air velocities.
Industrial Maintenance: Monitor air flow in various industrial applications.

Invest in the YK-80AP Anemometer for precise and reliable air velocity and temperature measurements, ensuring high performance and versatility in various industrial, environmental, and HVAC applications.
